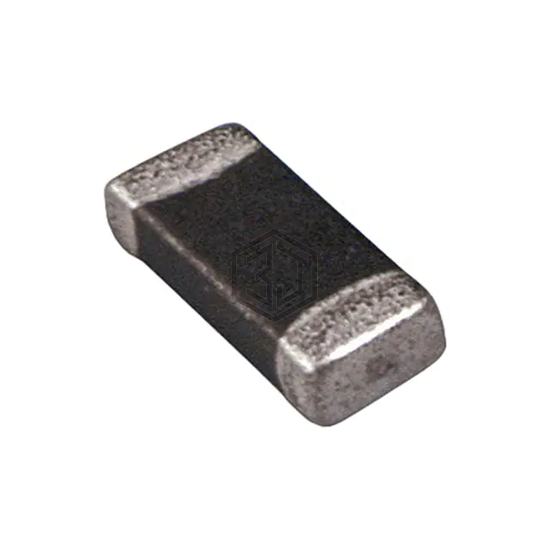

FIXED IND 100NH 250MA 250MOHM SM
7447912 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100NH 250MA 250MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), current rating (amps) 250 mA.
In Stock: 2,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 100 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 20 @ 25MHz |
| Frequency - Self Resonant | 270MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for 7447912 and get a quote within 24 hours.
