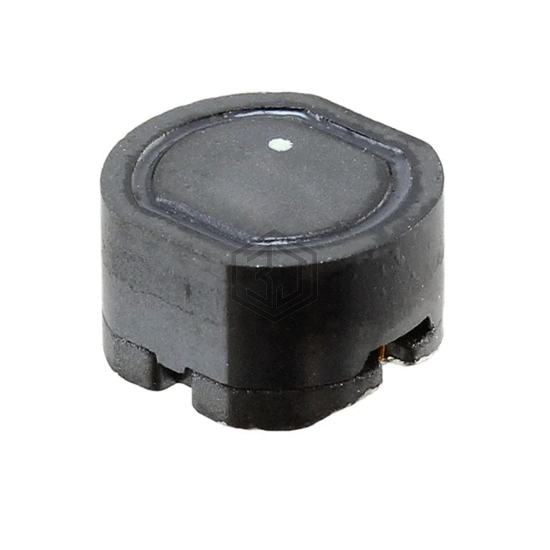

FIXED IND 120UH 730MA 643MOHM SM
744787121 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 120UH 730MA 643MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, current rating (amps) 730 mA.
In Stock: 978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 730 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 643mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
