FIXED IND 3.3NH 300MA 380MOHM SM

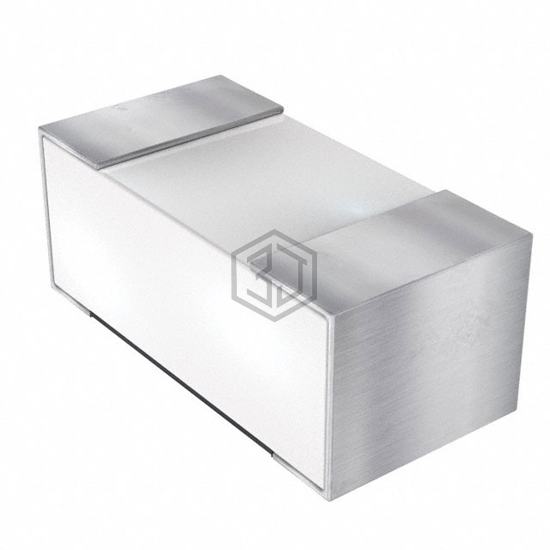

744782033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3NH 300MA 380MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 120°C, package / case 0201 (0603 Metric), current rating (amps) 300 mA.
In Stock: 1,788
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 3.3 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 380mOhm Max |
| Q @ Freq | 19 @ 800MHz |
| Frequency - Self Resonant | 7.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 120°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
Submit your RFQ for 744782033 and get a quote within 24 hours.
