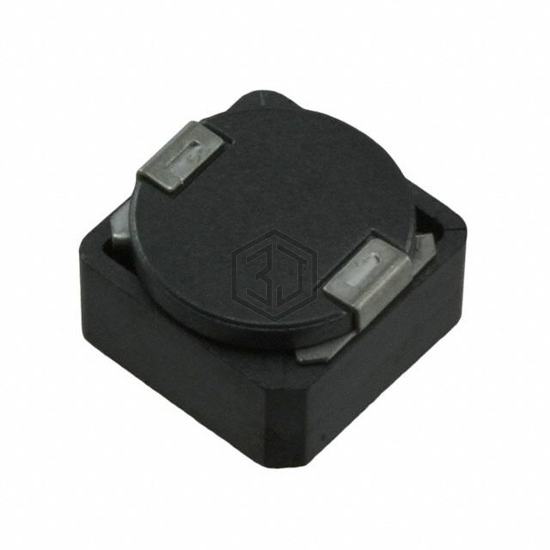

FIXED IND 27UH 4.3A 42.5MOHM SMD
7447798271 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 27UH 4.3A 42.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 4.3 A.
In Stock: 2,156
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 3.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 42.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.402" W (10.20mm x 10.20mm) |
| Height - Seated (Max) | 0.252" (6.40mm) |
Submit your RFQ for 7447798271 and get a quote within 24 hours.
