FIXED IND 82UH 690MA 690MOHM SMD

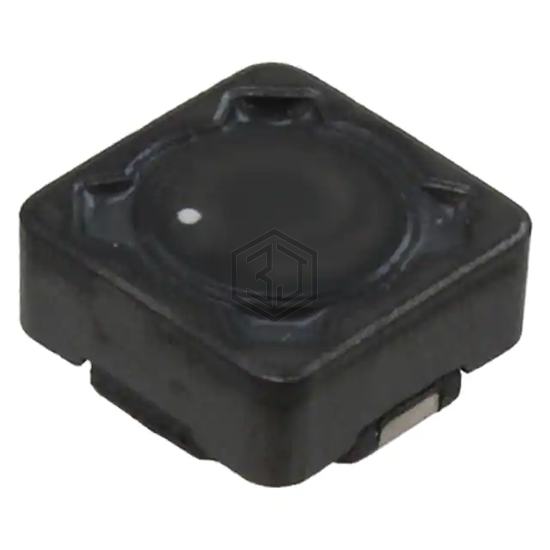

7447789182 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 82UH 690MA 690MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 690 mA.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 690 mA |
| Current - Saturation (Isat) | 780mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 690mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9.8MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for 7447789182 and get a quote within 24 hours.
