FIXED IND 6.8UH 2.5A 75 MOHM SMD

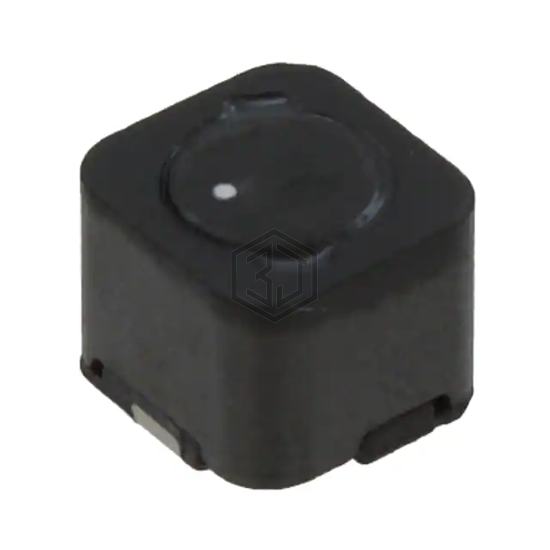

7447786006 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 2.5A 75 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.5 A.
In Stock: 972
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 60MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.244" L x 0.232" W (6.20mm x 5.90mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
