FIXED IND 22UH 1.35A 250MOHM SMD

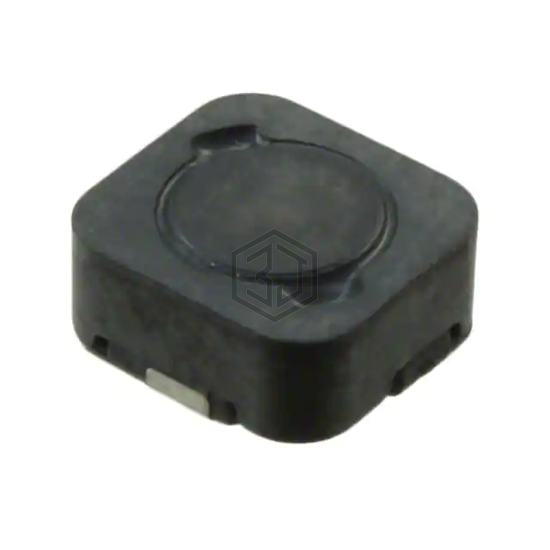

7447785122 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 1.35A 250MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.35 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 1.35 A |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 23MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.244" L x 0.232" W (6.20mm x 5.90mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for 7447785122 and get a quote within 24 hours.
