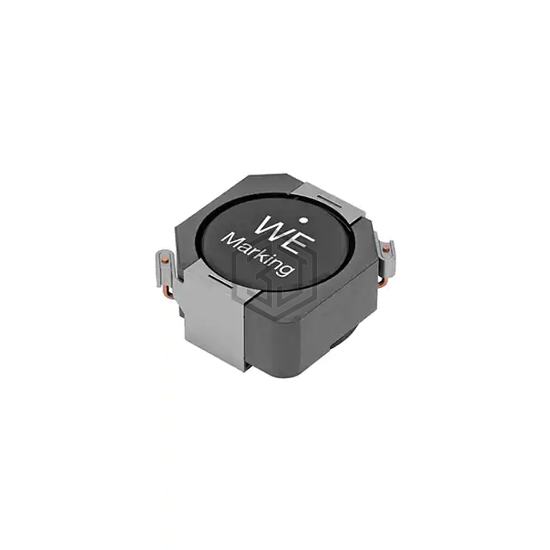

FIXED IND 68UH 1.15A 230MOHM SMD
7447773680 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 68UH 1.15A 230MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.15 A.
In Stock: 2,343
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.15 A |
| Current - Saturation (Isat) | 1.45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.4MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 7345 |
| Size / Dimension | 0.291" L x 0.287" W (7.40mm x 7.30mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for 7447773680 and get a quote within 24 hours.
