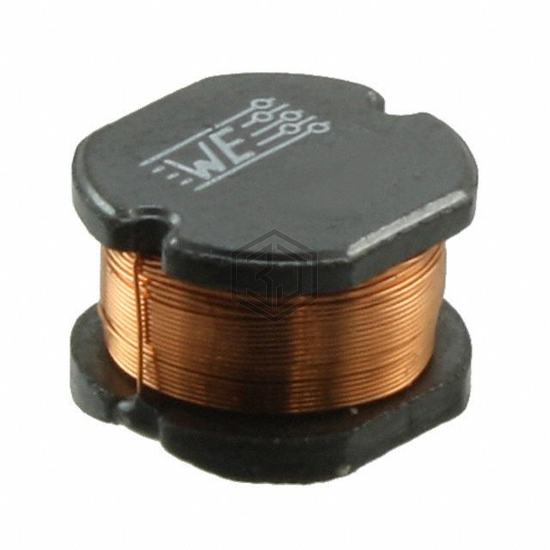

FIXED IND 6MH 230MA 14 OHM SMD
744776360 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6MH 230MA 14 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 230 mA.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | 270mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 570kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.354" W (10.20mm x 9.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
Submit your RFQ for 744776360 and get a quote within 24 hours.
