FIXED IND 270UH 620MA 970MOHM SM

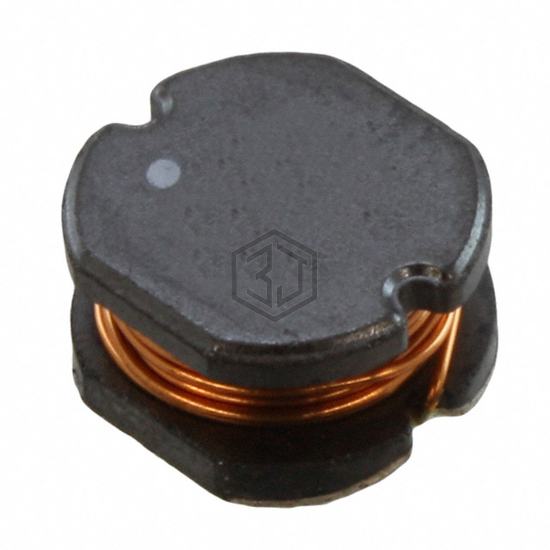

744776227 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 270UH 620MA 970MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 620 mA.
In Stock: 1,473
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 620 mA |
| Current - Saturation (Isat) | 680mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 970mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for 744776227 and get a quote within 24 hours.
