FIXED IND 220UH 670MA 730MOHM SM

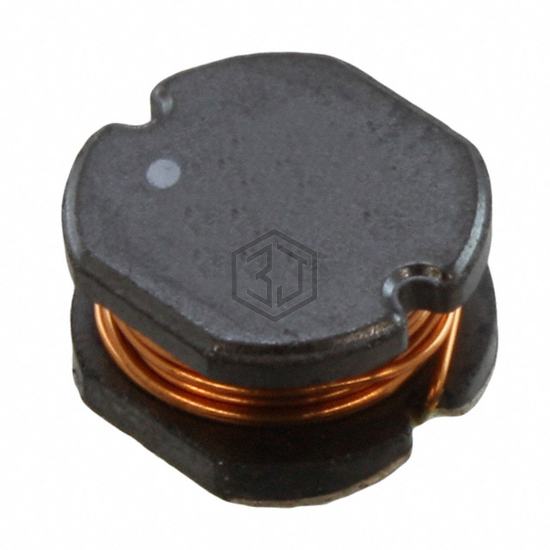

744776222 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220UH 670MA 730MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 670 mA.
In Stock: 120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 670 mA |
| Current - Saturation (Isat) | 770mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 730mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for 744776222 and get a quote within 24 hours.
