FIXED IND 3.3UH 5A 20 MOHM SMD

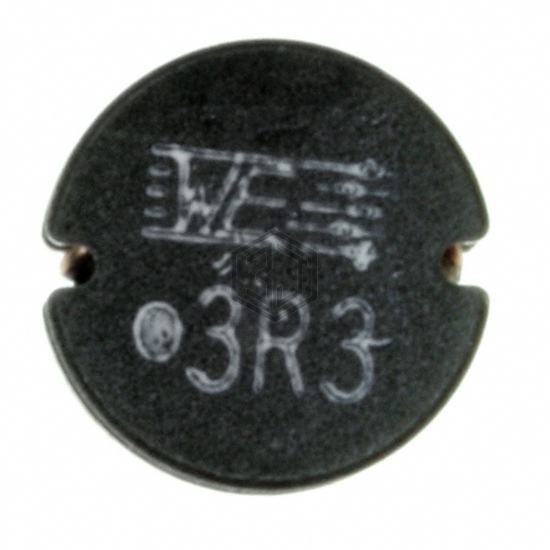

744776033A is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3UH 5A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | 34 @ 7.96MHz |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.374" L x 0.374" W (9.50mm x 9.50mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
