FIXED IND 82UH 900MA 370MOHM SMD

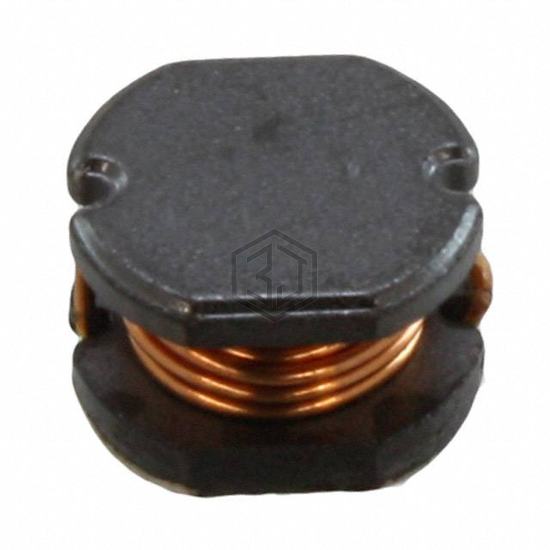

744775182 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 82UH 900MA 370MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 950mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 370mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for 744775182 and get a quote within 24 hours.
