FIXED IND 6.8UH 3.2A 40 MOHM SMD

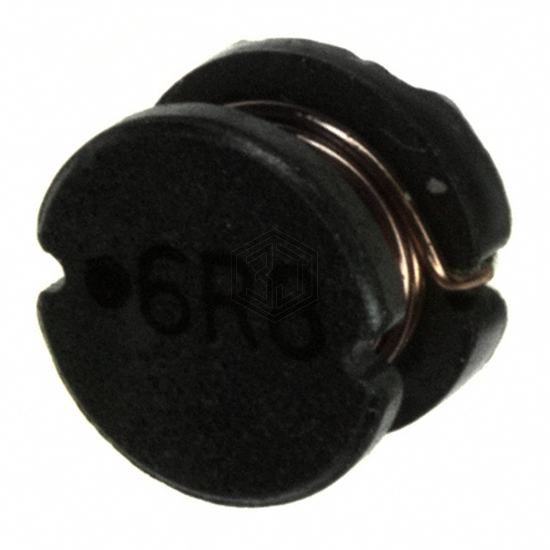

744775068A is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 3.2A 40 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 33MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
