FIXED IND 2.2UH 3.6A 36 MOHM SMD

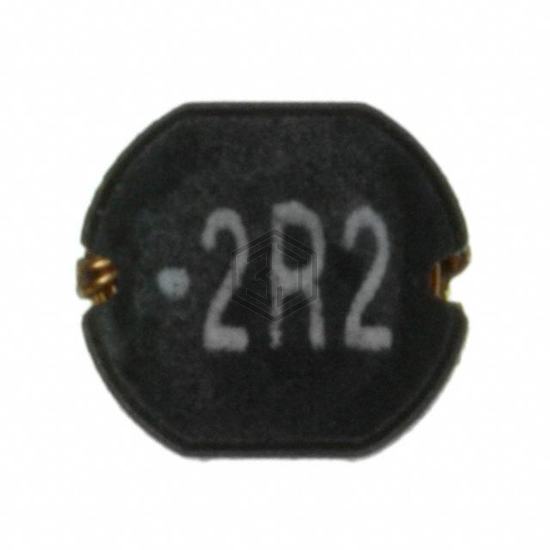

7447745022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 3.6A 36 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.6 A.
In Stock: 2,180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.6 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 36mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 64MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Height - Seated (Max) | 0.091" (2.30mm) |
Submit your RFQ for 7447745022 and get a quote within 24 hours.
