FIXED IND 56UH 770MA 420MOHM SMD

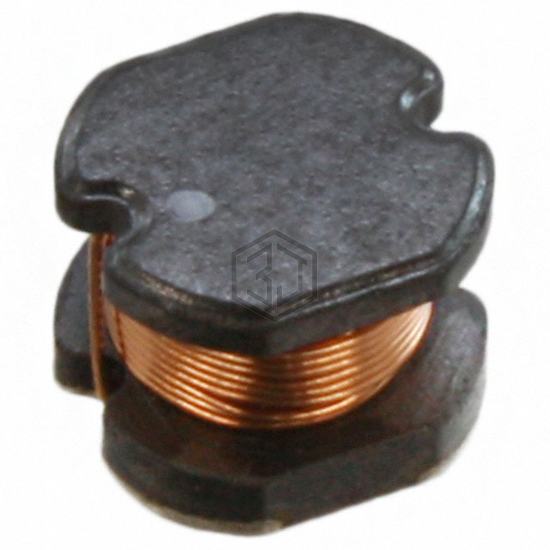

744774156 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 56UH 770MA 420MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 770 mA.
In Stock: 868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 770 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Height - Seated (Max) | 0.191" (4.85mm) |
Submit your RFQ for 744774156 and get a quote within 24 hours.
