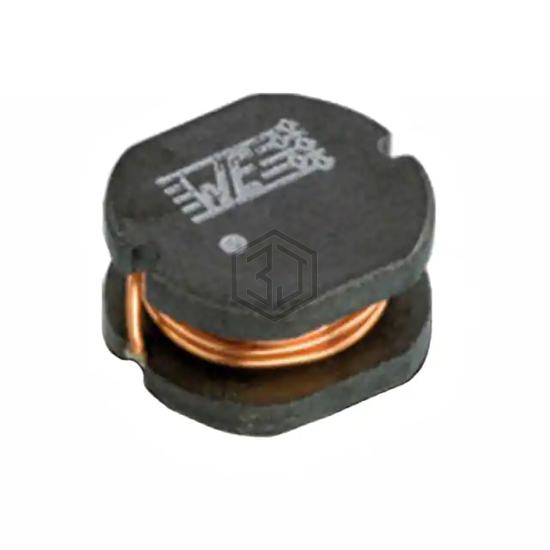

FIXED IND 47UH 360MA 1.33OHM SMD
7447732147 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 47UH 360MA 1.33OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 360 mA.
In Stock: 2,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | 590mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.33Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 3521 |
| Size / Dimension | 0.138" L x 0.118" W (3.50mm x 3.00mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
