FIXED IND 2.2UH 1.71A 90MOHM SMD

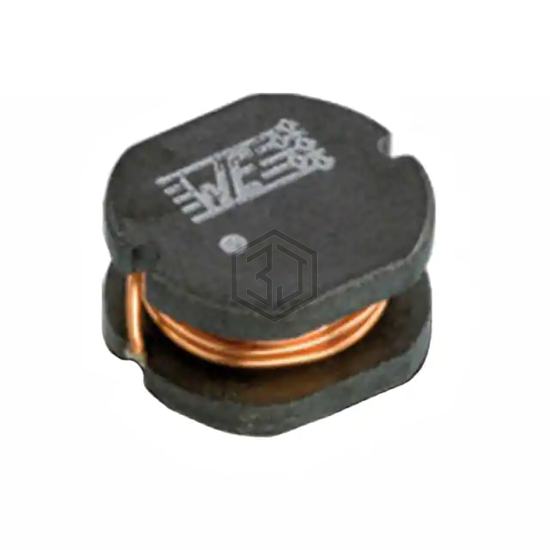

7447732022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 1.71A 90MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.71 A.
In Stock: 7,307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.71 A |
| Current - Saturation (Isat) | 2.54A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 3521 |
| Size / Dimension | 0.138" L x 0.118" W (3.50mm x 3.00mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for 7447732022 and get a quote within 24 hours.
