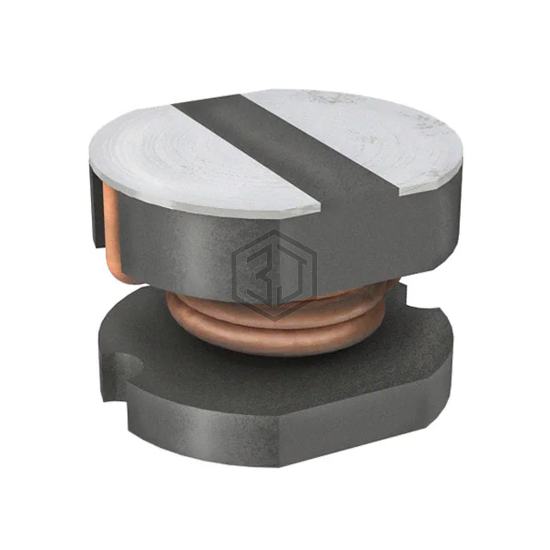

FIXED IND 2.7UH 2.25A 79MOHM SMD
744773027 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.7UH 2.25A 79MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.25 A.
In Stock: 4,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.25 A |
| Current - Saturation (Isat) | 2.97A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 79mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 72MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for 744773027 and get a quote within 24 hours.
