FIXED IND 600NH 9.5A 5.5MOHM SMD

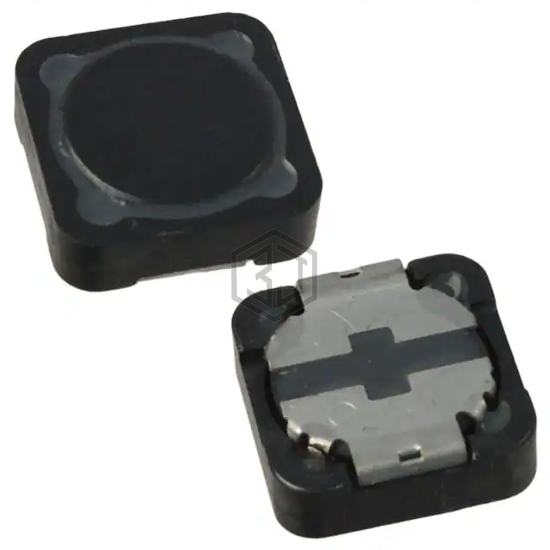

7447715906 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 600NH 9.5A 5.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.5 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 600 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 160MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for 7447715906 and get a quote within 24 hours.
