FIXED IND 1MH 430MA 2.05 OHM SMD

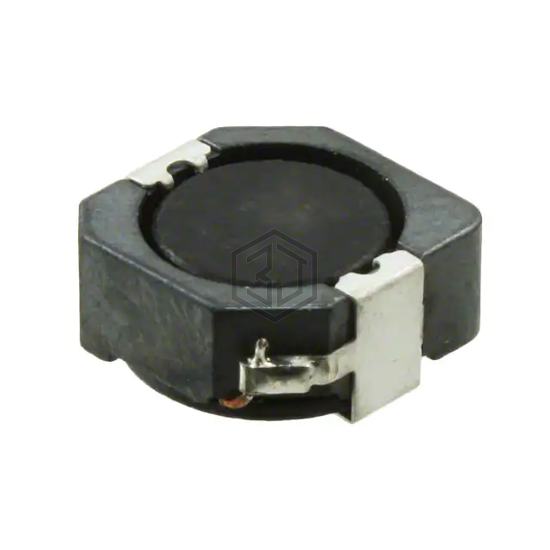

7447714102 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1MH 430MA 2.05 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 430 mA.
In Stock: 3,935
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 430 mA |
| Current - Saturation (Isat) | 550mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.05Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.7MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 7447714102 and get a quote within 24 hours.
