FIXED IND 3.3UH 7.5A 10.5MOHM SM

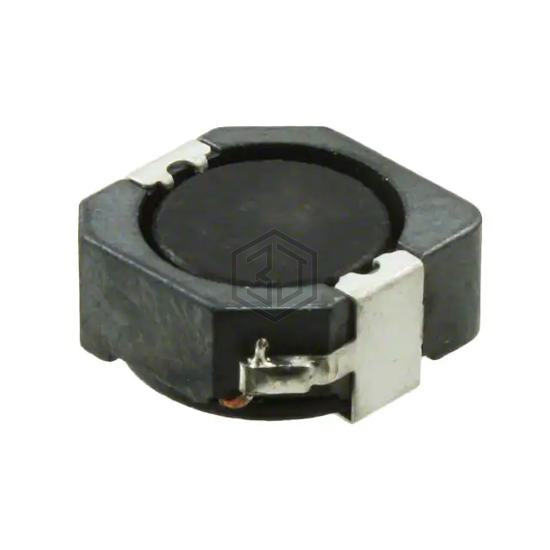

7447714033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3UH 7.5A 10.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.5 A.
In Stock: 2,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 7.5 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 42MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 7447714033 and get a quote within 24 hours.
