FIXED IND 15UH 2.2A 89 MOHM SMD

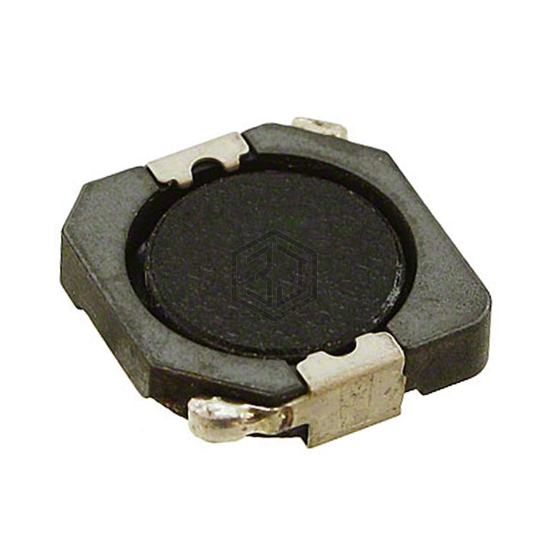

7447713150 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 15UH 2.2A 89 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.2 A.
In Stock: 1,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 3.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 89mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 19.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 7447713150 and get a quote within 24 hours.
