FIXED IND 10UH 5.8A 20 MOHM SMD

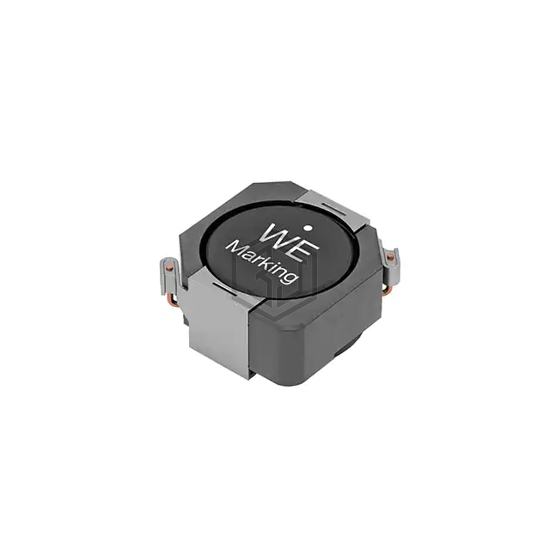

7447706100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 5.8A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 5.8 A.
In Stock: 522
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 7.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17.6MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.315" W (14.00mm x 8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
Submit your RFQ for 7447706100 and get a quote within 24 hours.
