FIXED IND 15UH 5A 27 MOHM SMD

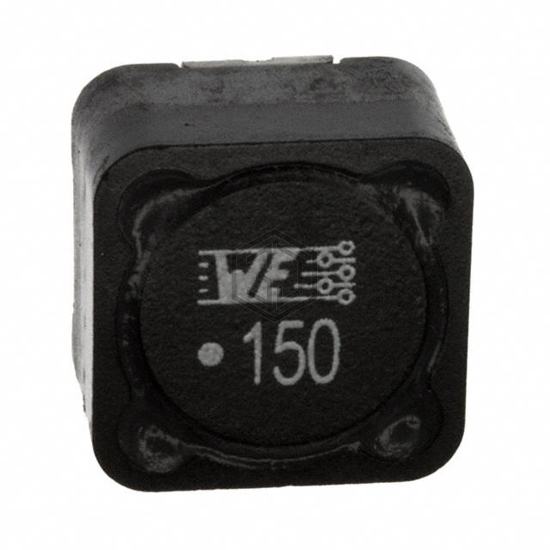

744770115 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 15UH 5A 27 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 45,876
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 14.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for 744770115 and get a quote within 24 hours.
