FIXED IND 3.5UH 8.9A 14 MOHM SMD

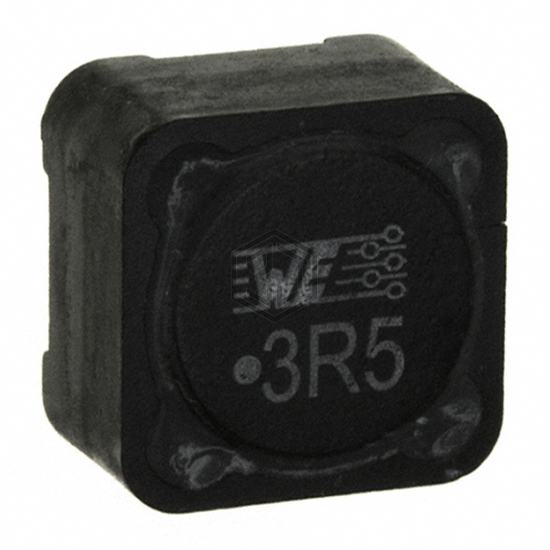

74477003 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.5UH 8.9A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 8.9 A.
In Stock: 348
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.5 µH |
| Tolerance | -20%, +40% |
| Current Rating (Amps) | 8.9 A |
| Current - Saturation (Isat) | 9.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 37.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for 74477003 and get a quote within 24 hours.
