FIXED IND 12UH 810MA 465MOHM SMD

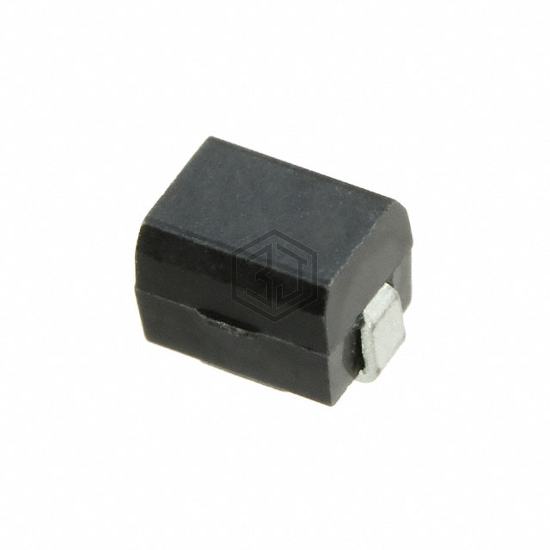

7447669112 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 12UH 810MA 465MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 810 mA.
In Stock: 404
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 12 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 810 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 465mOhm Max |
| Q @ Freq | 35 @ 1.06MHz |
| Frequency - Self Resonant | 31MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1.06 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4532 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
