FIXED IND 3.9UH 1.25A 215MOHM SM

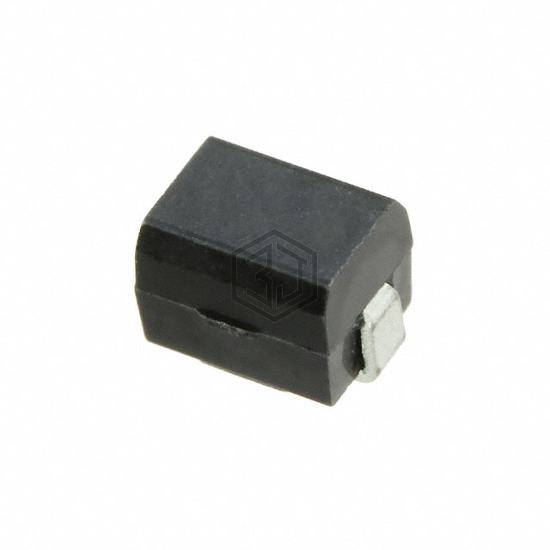

7447669039 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.9UH 1.25A 215MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.25 A.
In Stock: 1,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 3.9 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.25 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 215mOhm Max |
| Q @ Freq | 30 @ 1.45MHz |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1.45 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4532 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for 7447669039 and get a quote within 24 hours.
