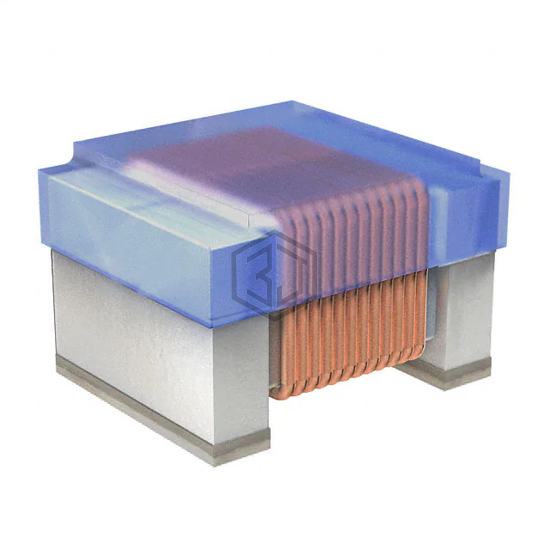

FIXED IND 30NH 400MA 300MOHM SMD
744765130GA is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 30NH 400MA 300MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 400 mA.
In Stock: 2,653
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 30 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 2.35GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for 744765130GA and get a quote within 24 hours.
