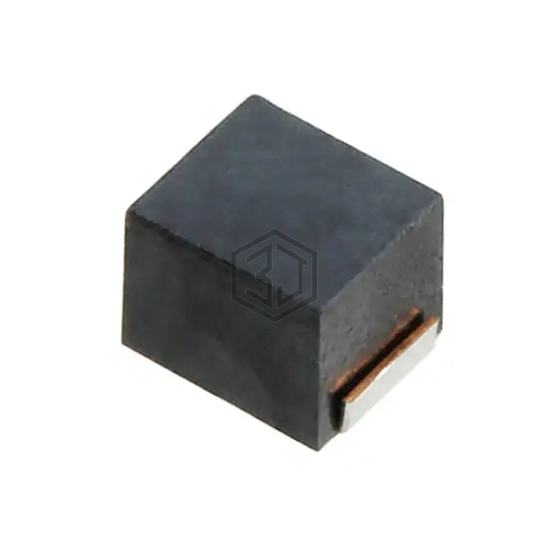

FIXED IND 22UH 265MA 3 OHM SMD
7447629220 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 265MA 3 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 265 mA.
In Stock: 1,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 265 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3Ohm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2520 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for 7447629220 and get a quote within 24 hours.
