FIXED IND 150NH 800MA 220MOHM SM

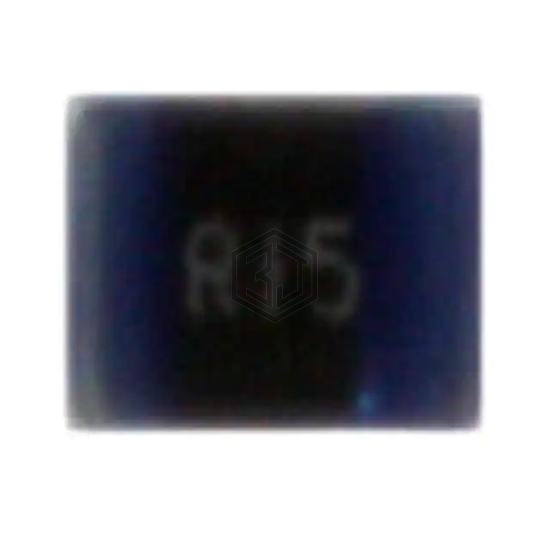

744762215A is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 150NH 800MA 220MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 800 mA.
In Stock: 8,375
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 150 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 880MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
Submit your RFQ for 744762215A and get a quote within 24 hours.
