WE-KI SMT WIRE WOUND CERAMIC IND

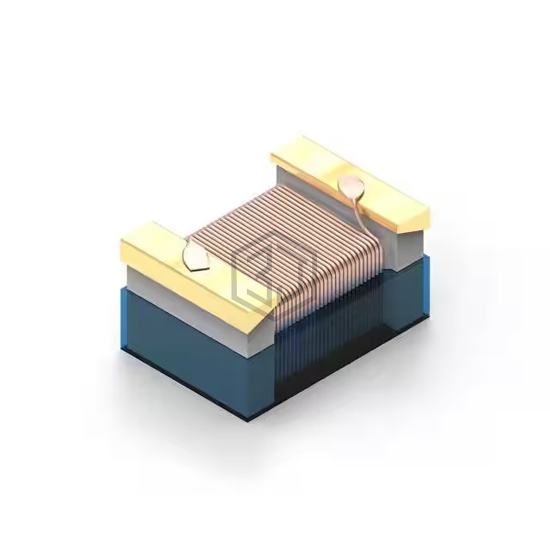

744761247A is a Fixed Inductors manufactured by Würth Elektronik. WE-KI SMT WIRE WOUND CERAMIC IND. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 170 mA.
In Stock: 2,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 470 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | 15 @ 25MHz |
| Frequency - Self Resonant | 250MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Height - Seated (Max) | 0.049" (1.25mm) |
Submit your RFQ for 744761247A and get a quote within 24 hours.
