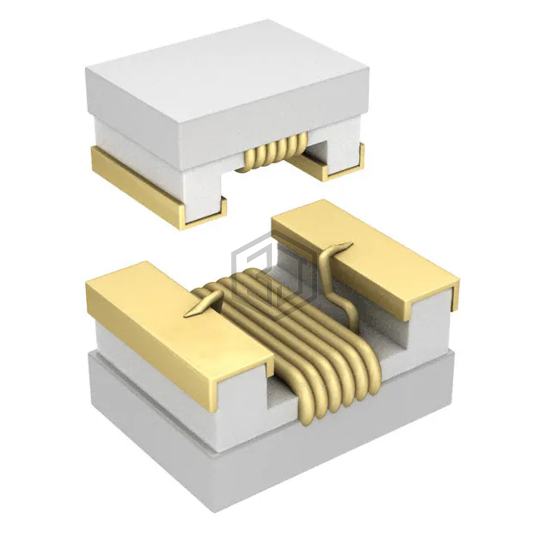

FIXED IND 51NH 600MA 240MOHM SMD
744761151C is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 51NH 600MA 240MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 600 mA.
In Stock: 1,761
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 51 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 240mOhm Max |
| Q @ Freq | 32 @ 200MHz |
| Frequency - Self Resonant | 1.95GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.045" W (1.65mm x 1.15mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
