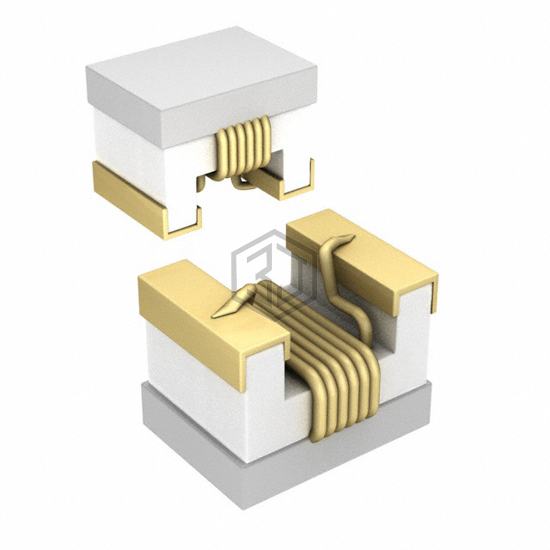

FIXED IND 470NH 250MA 2.3OHM SMD
74476032C is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 470NH 250MA 2.3OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 250 mA.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 470 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.3Ohm Max |
| Q @ Freq | 30 @ 100MHz |
| Frequency - Self Resonant | 375MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Height - Seated (Max) | 0.058" (1.48mm) |
