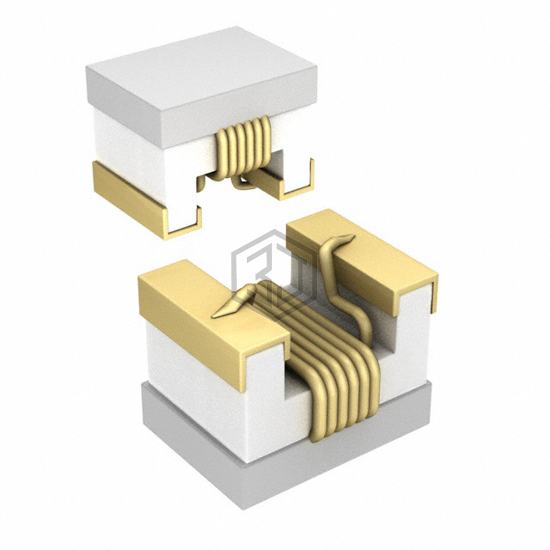

FIXED IND 6.8NH 600MA 110MOHM SM
744760068C is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8NH 600MA 110MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 600 mA.
In Stock: 1,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 6.8 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 50 @ 1GHz |
| Frequency - Self Resonant | 5.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Height - Seated (Max) | 0.058" (1.48mm) |
Submit your RFQ for 744760068C and get a quote within 24 hours.
