FIXED IND 3.3NH 800MA 80MOHM SMD

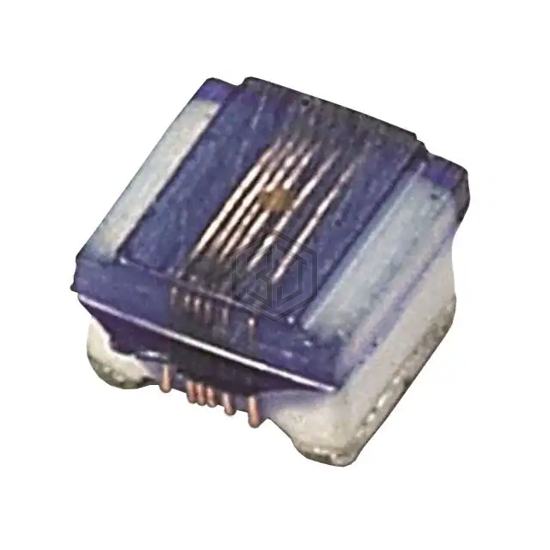

744760033A is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3NH 800MA 80MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 800 mA.
In Stock: 1,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 3.3 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 60 @ 1GHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Submit your RFQ for 744760033A and get a quote within 24 hours.
