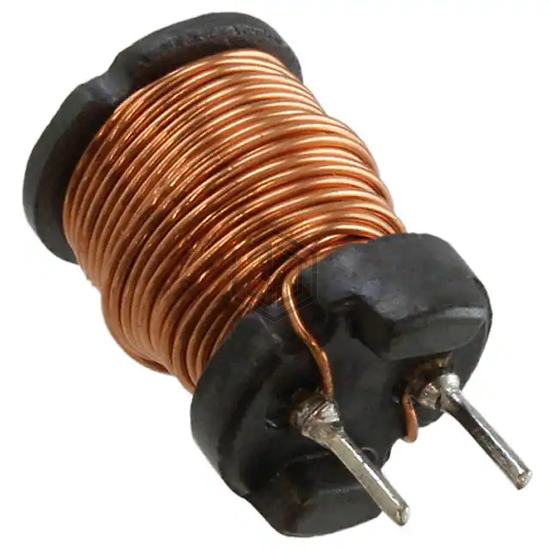

FIXED IND 470UH 1.15A 520MOHM TH
7447480471 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 470UH 1.15A 520MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 1.15 A.
In Stock: 1,101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.15 A |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 520mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for 7447480471 and get a quote within 24 hours.
