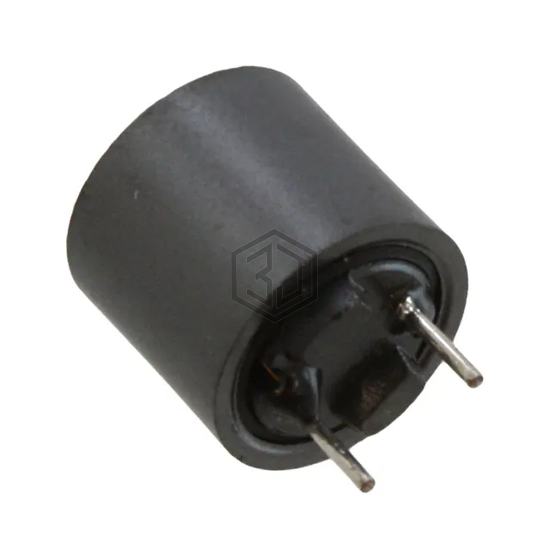

FIXED IND 3.3MH 300MA 4.8 OHM TH
7447471332 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3MH 300MA 4.8 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 300 mA.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | 250mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.8Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 660kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
