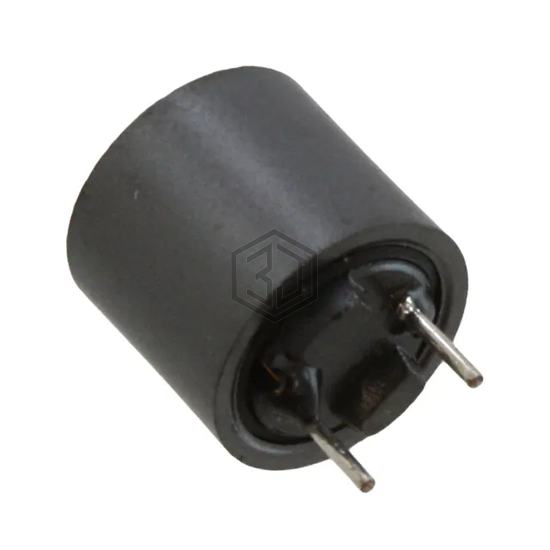

FIXED IND 10UH 5.1A 22 MOHM TH
7447471100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 5.1A 22 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 5.1 A.
In Stock: 516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 22mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for 7447471100 and get a quote within 24 hours.
