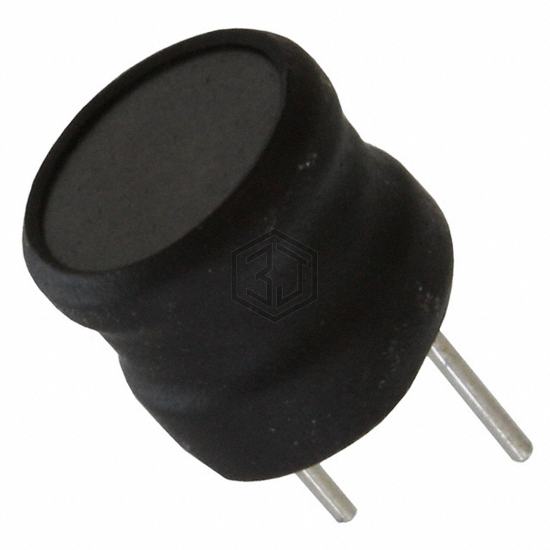

FIXED IND 1MH 330MA 3.4 OHM TH
744732102 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1MH 330MA 3.4 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 330 mA.
In Stock: 1,320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.4Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for 744732102 and get a quote within 24 hours.
