FIXED IND 4.7MH 360MA 4 OHM TH

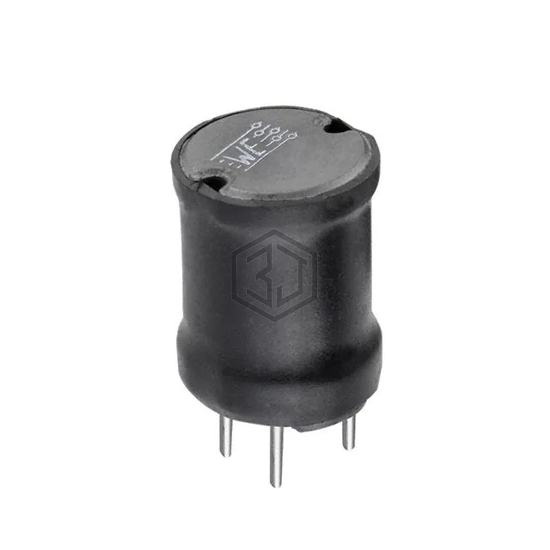

7447231472 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 4.7MH 360MA 4 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical Cylinder, 4 Leads, current rating (amps) 360 mA.
In Stock: 85
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | 470mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 480kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
