FIXED IND 10UH 15A 5.7 MOHM TH

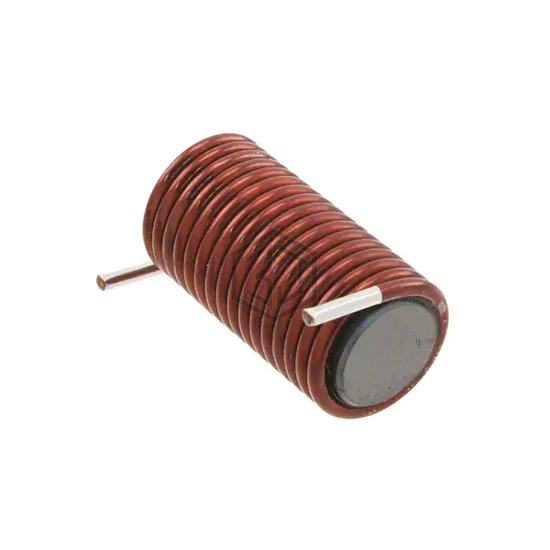

744711015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 15A 5.7 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 15 A.
In Stock: 2,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 37MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744711015 and get a quote within 24 hours.
