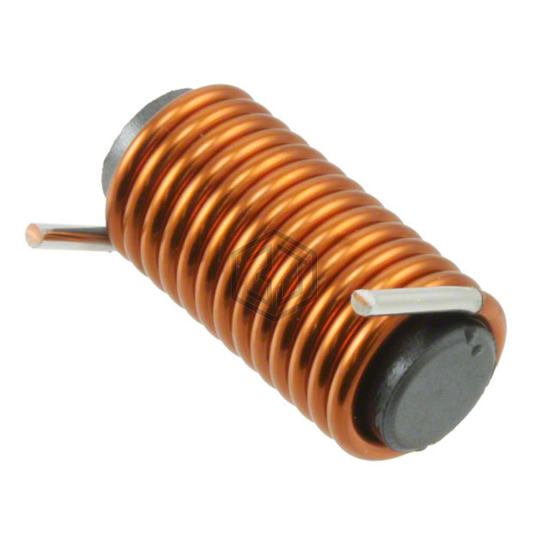

FIXED IND 6UH 15A 3.5 MOHM TH
744710615 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6UH 15A 3.5 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 15 A.
In Stock: 296
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) |
| Height - Seated (Max) | - |
