FIXED IND 6UH 2.5A 22 MOHM TH

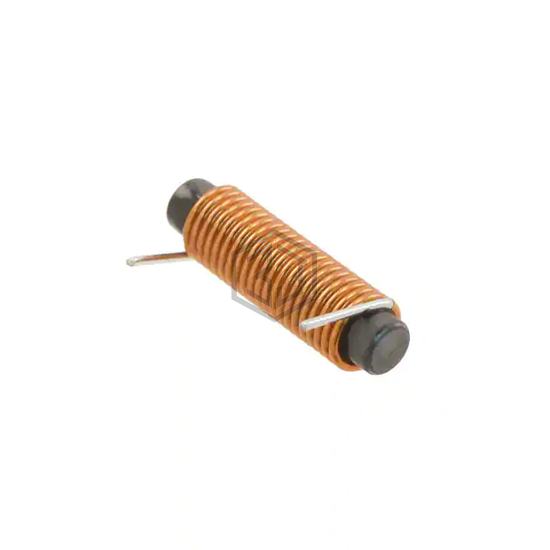

744710603 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6UH 2.5A 22 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 2.5 A.
In Stock: 1,391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 22mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 65MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.165" Dia x 0.606" L (4.20mm x 15.40mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744710603 and get a quote within 24 hours.
