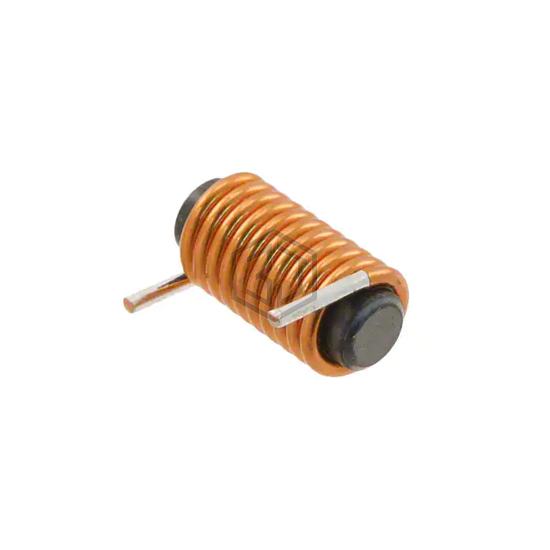

FIXED IND 2UH 10A 3.8 MOHM TH
744710210 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2UH 10A 3.8 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 10 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744710210 and get a quote within 24 hours.
