FIXED IND 47UH 2.6A 86 MOHM SMD

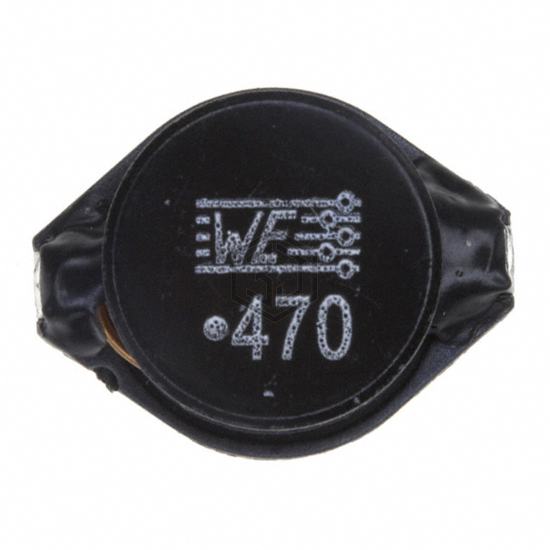

74458147 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 47UH 2.6A 86 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.6 A.
In Stock: 318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 86mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
Submit your RFQ for 74458147 and get a quote within 24 hours.
