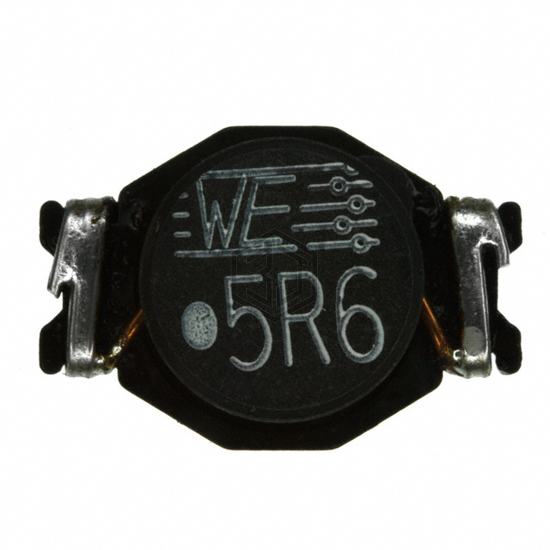

FIXED IND 5.6UH 7.8A 15 MOHM SMD
74457056 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 5.6UH 7.8A 15 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.8 A.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.8 A |
| Current - Saturation (Isat) | 14A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 27MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
Submit your RFQ for 74457056 and get a quote within 24 hours.
