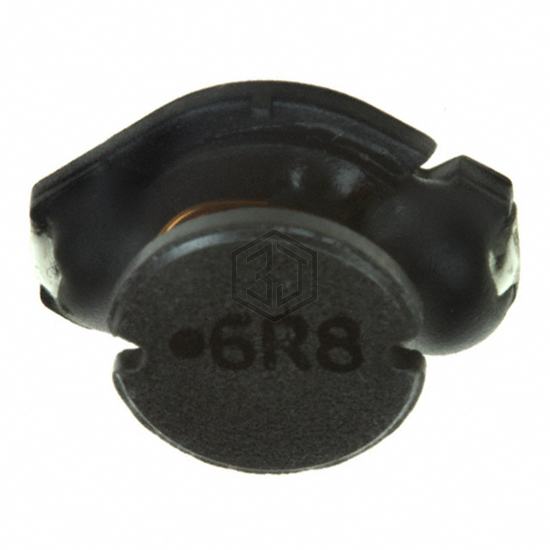

FIXED IND 6.8UH 3.8A 34 MOHM SMD
74456068 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 3.8A 34 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.8 A.
In Stock: 515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 5.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 34mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Submit your RFQ for 74456068 and get a quote within 24 hours.
