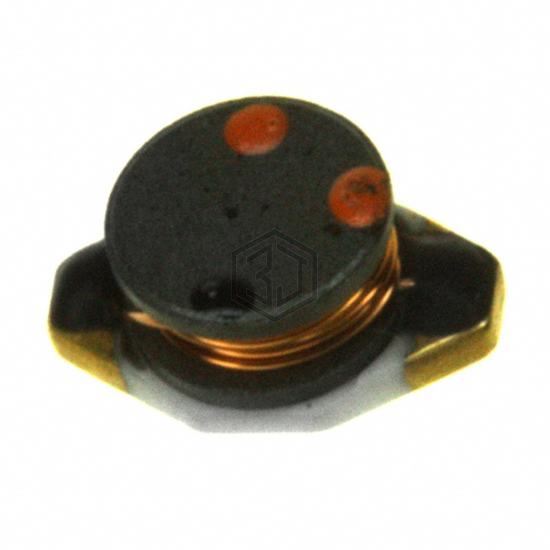

FIXED IND 33UH 600MA 510MOHM SMD
74455133 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 33UH 600MA 510MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 600 mA.
In Stock: 1,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 580mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 510mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) |
Submit your RFQ for 74455133 and get a quote within 24 hours.
