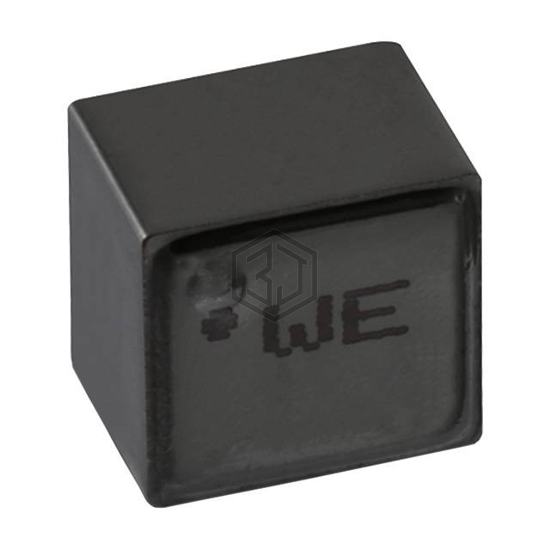

FIXED IND 22UH 8A 13.3 MOHM SMD
74439370220 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 8A 13.3 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 8 A.
In Stock: 583
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.3mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.646" L x 0.606" W (16.40mm x 15.40mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for 74439370220 and get a quote within 24 hours.
